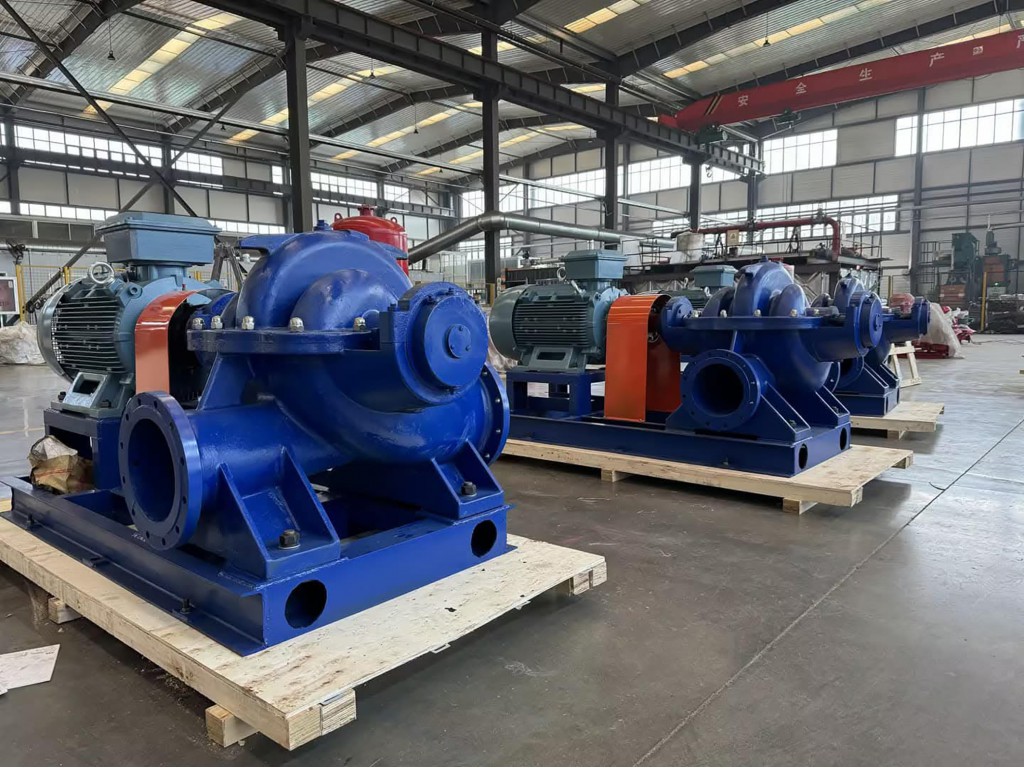

XS250-480 High quality horizontal split case pump
ประเภท  XS250-480
ความจุ 576-1584 ลบ.ม./ชม
ระยะยกหัวปั๊ม 7-300 ม.
ส่วนหัว 26-77 ม.
ความเร็ว 1450 รอบ/นาที
กำลังของเพลา  91.1-273.5 กิโลวัตต์
กำลังมอเตอร์ 160-315 กิโลวัตต์
ประสิทธิภาพ 74-84%
NPSH 3.8-5.6 ม.
เส้นผ่านศูนย์กลางของทางออกปั๊ม DN80 ถึง DN900
แรงดันใช้งานของปั๊ม P≤5 Mpa
อุณหภูมิการทำงานของปั๊ม T-20-200 °C
แรงดันใช้งานปั๊ม 380V /50Hz

Specification
Type : XS250-480
Capacity : 576-1584 m3/h
Pump lift head range : 7-300 m
Head : 26-77 m
Speed : 1450 r/min
Shaft Power : 91.1-273.5 kw
Motor Power : 160-315 kw
Efficiency : 74-84 %
NPSH : 3.8-5.6 m
Diameter of pump outlet : DN80 to DN900
Pump working pressure : P≤5 Mpa
Pump working temperature : T-20-200°C
Pump working voltage : 380V to 10000V, 50Hz & 60Hz

Product Description
- XS type pump is a new generation of high efficiency single stage double suction centrifugal pumps which mainly used in
delivering liquids of the water plant, air conditioner circulation water, heating pipe network system, building water supply,
irrigation and drainage of pump stations, power plants, industrial water supply system, fire fighting system, shipping industry
and mine. It is a new substitute of SH, S, SA, SLA and SAP.

Structural Features
- Inlet and outlet at the same line,the same rotor of the XS pumps can be operated in reverse direction,the XS pumps works
stably with less noise and vibration and can work at raising speed due to short spacing between both side support, which make
the pumps can be widely used. The XS pumps adopt the way of middle support, thicken the pump casing, and use cooling
seals and oil lubrication bearing which make XS pump suitable working at 200ºC,especially for supply heating net system.
XS type pumps can be vertically  or horizontally mounted according to different working condition, with mechanical seals or
packing seals.
