ปั๊มพลาสติกแนวตั้ง PP
ลักษณะสินค้า
- PP Plastic Vertical Pump ตัวปั๊มใช้วัสดุ GFRPP, PVDF เพื่อให้ทนต่ออุณหภูมิสูงและทนต่อการกัดกร่อนสูง
- การออกแบบซีลของเหลวแห้ง (1-25 แรงม้า) เพื่อป้องกันมอเตอร์และแบริ่งจากการสึกกร่อนจากสารเคมีและเพื่อยืดอายุการใช้งาน
- การออกแบบปั๊มให้ทำงานโดยไม่ใช้น้ำ สามารถใช้ได้กับการทำงานเดินเบาและหลีกเลี่ยงความเสียหายใด ๆ
ข้อมูลจำเพาะ
รุ่น : DT-65VK-10
เส้นโค้ง 50/60hz : h / H
ขนาด (มม.) ทางเข้า / ทางออก : 80/65
กำลัง (HP) : 10
การไหล (LPM) 50/60hz : 590/890
หัว (ม.) 50hz/60hz : 18/20
การไหลทั้งหมด (ม.) 50/60hz : 950/1050
หัวทั้งหมด (ม.) 50/60hz : 28/39
น้ำหนัก (กก.) : 106

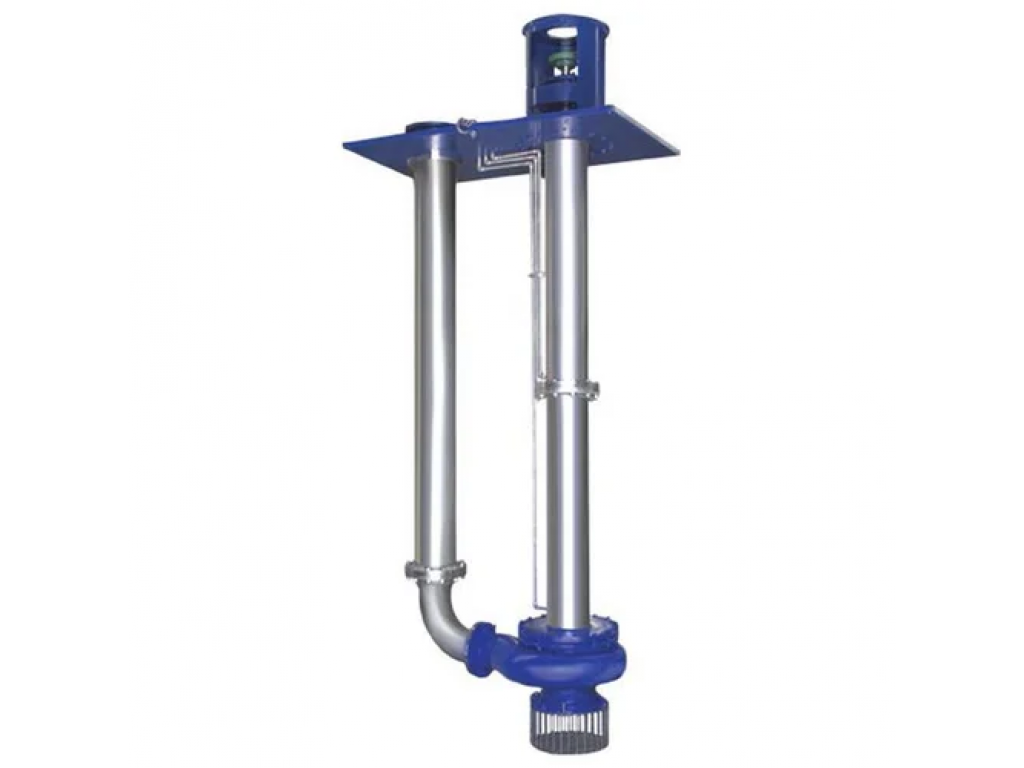

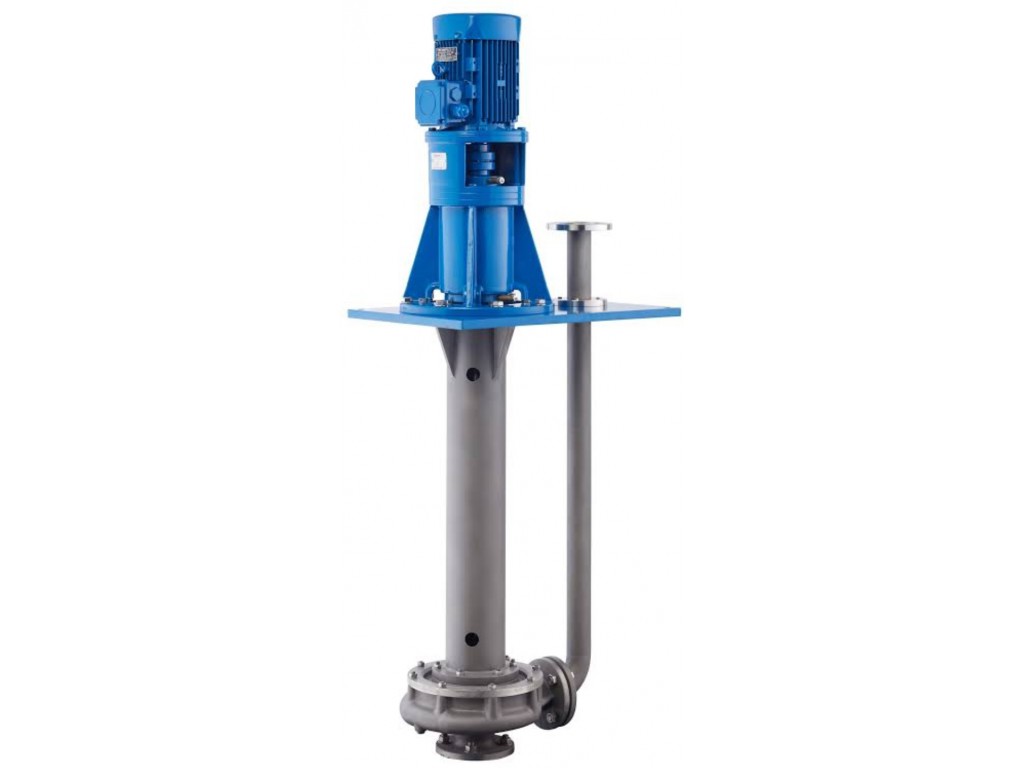

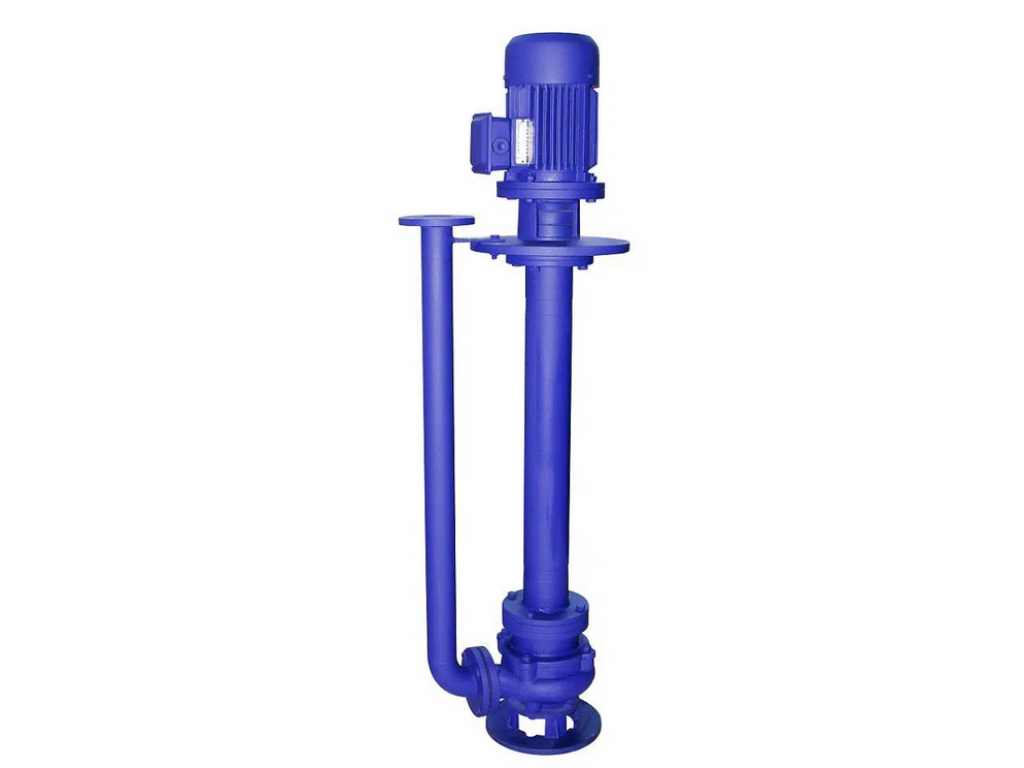

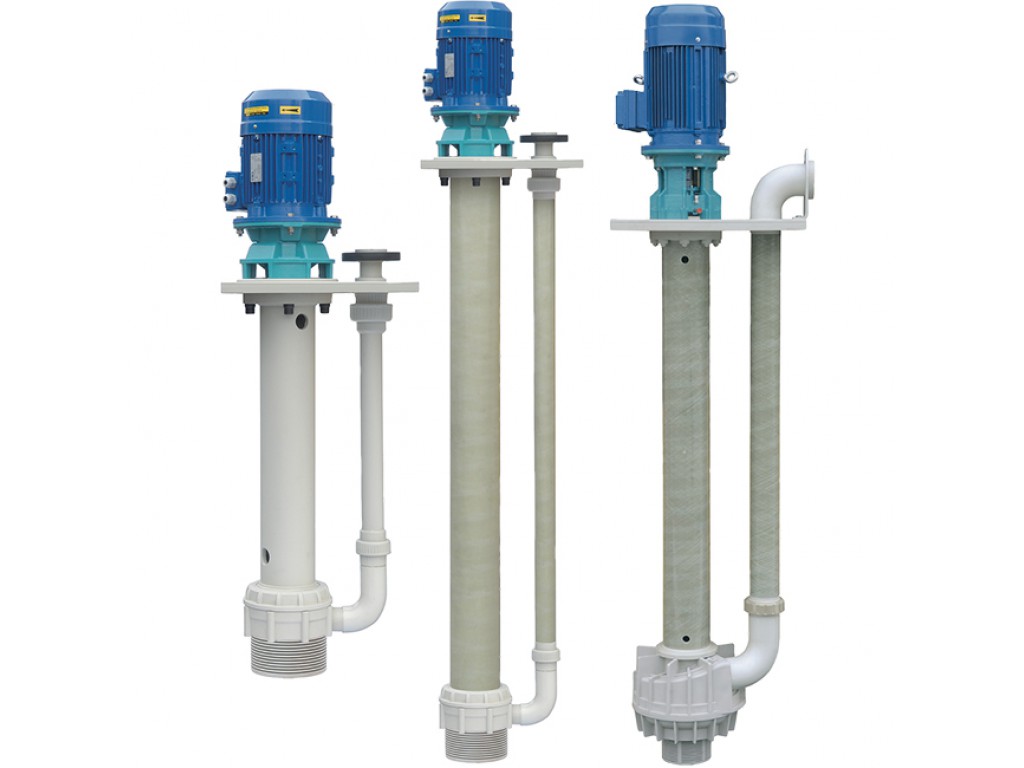

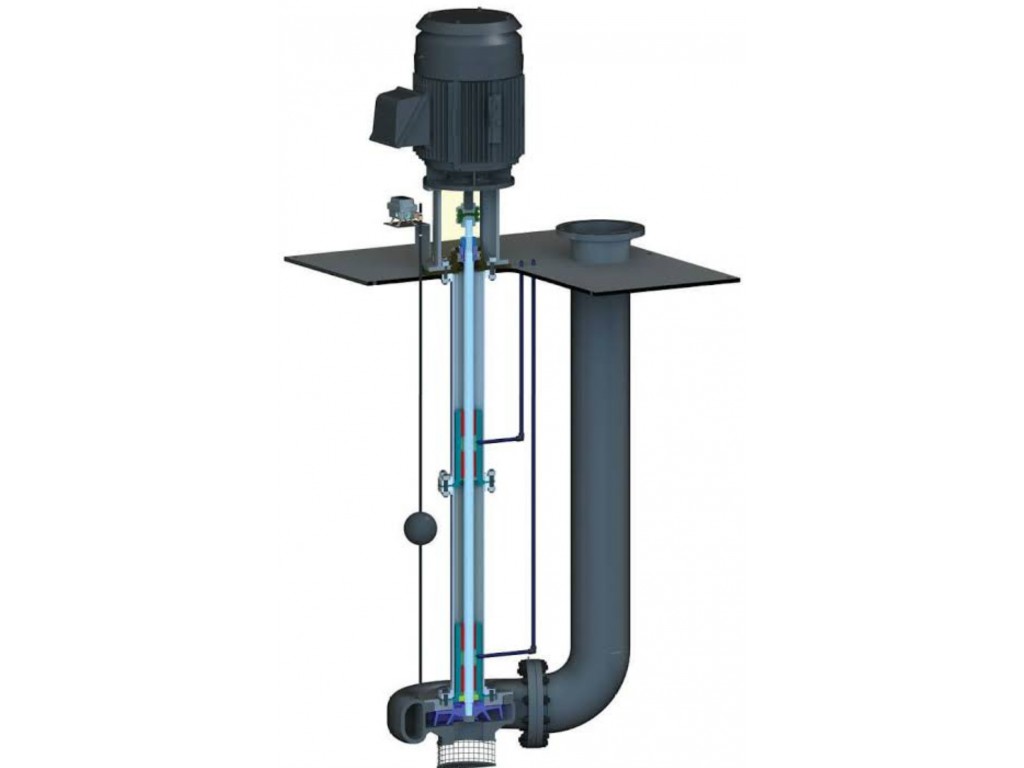

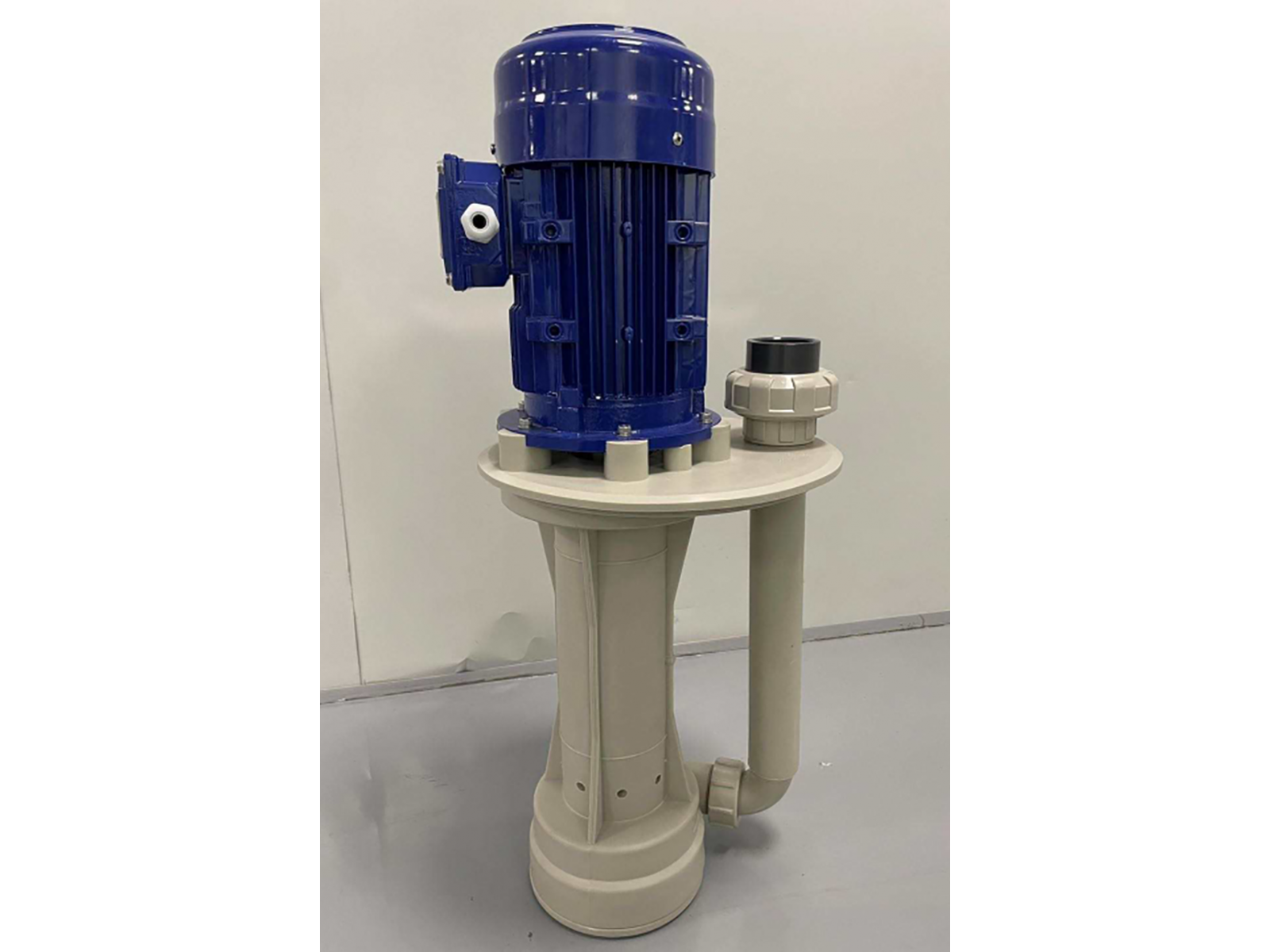

PP Plastic Vertical Pump
Product Characteristic
- PP Plastic Vertical Pump, the pump's body adopt GFRPP, PVDF material to getting with high temperature resistance and high corrosion resistance.
- Dry liquid seal design (1-25HP), to protect motor and bearing to be erosion by the chemical and to prolong its working life.
- The pump design to work without water, it is available for idle running and avoid to any damage.
specification
Model : DT-65VK-10
Curve 50/60hz : h / H
Size (mm) Inlet / outlet : 80/65
Power (HP) : 10
Flow (LPM) 50/60hz : 590/890
Head (m) 50hz/60hz : 18/20
Total Flow (m) 50/60hz : 950/1050
Total Head (m) 50/60hz : 28/39
Weight (Kg) : 106
|
|
|
หมายเลขอ้างอิง: 46876
รายละเอียดย่อ
F3L912 Vertical in-Line Air Cooled Deutz Diesel Engine
รุ่นเครื่องยนต์ F3L912
เครื่องยนต์ ดีเซล 3 สูบ
จำนวนจังหวะ 4 จังหวะ
ประเภทเครื่องยนต์ อินไลน์แนวตั้ง
ขนาดกระบอกสูบ 100*120 มิลลิเมตร
กำลังไฟ 32-51 กิโลวัตต์
ความเร็วสูงสุด 1500-2500 รอบต่อนาที
ความจุเครื่องยนต์ 3.77 ลิตร
ประเภทการเผาไหม้ ไดเร็คอินเจ็กชั่น
ขนาด 1200*880*1150 มิมลิเมตร
น้ำหนัก 300 กิโลกรัม
ยี่ห้อ Deutz
ผู้ผลิตใน ประเทศจีน
Model NO.F3L912
Fuel Diesel
Number of Strokes Four-Stroke
Cylinder Number 3-cylinders
Engine Type Vertical in-Line
Bore*Stroke :100*120 mm
Rated Power 32-51Kw
Rated Speed :1500-2500 Rpm
Displacement 3.77 L
Combustion Type : Direct Injection
Dimension 1200*880*1150
Weight 300 kg
Trademark Deutz
Origin China...1234
|
ต้นกำเนิดสินค้า: China |
การบริการและรับประกัน: ยังไม่มีการรับประกัน |
![]() |
![]() |
Capacity: 200 GPM – 2000 GPM
Pressures: 40 – 355 psi
Maximum Working Pressures: 290 to 395 PSI
Speed: 1480,1760, 2900,2980, 3000 RPM
Dynamically Balanced Impeller extends bearing life and ensures smoother operation.
Designed and built as per UL 448 AND NFPA20 for maximum reliability.
Constructed in variety of metallurgies.
Available in 50 Hz and 60 Hz.
Drivers with gear boxes at electric and diesel speeds.
Designed for easy maintenance without interfering with piping.
Open line shaft, water lubricated construction for ease of maintenance.
Self-Venting Design eliminates vapor lock and the need for automatic air release valve
