Specification

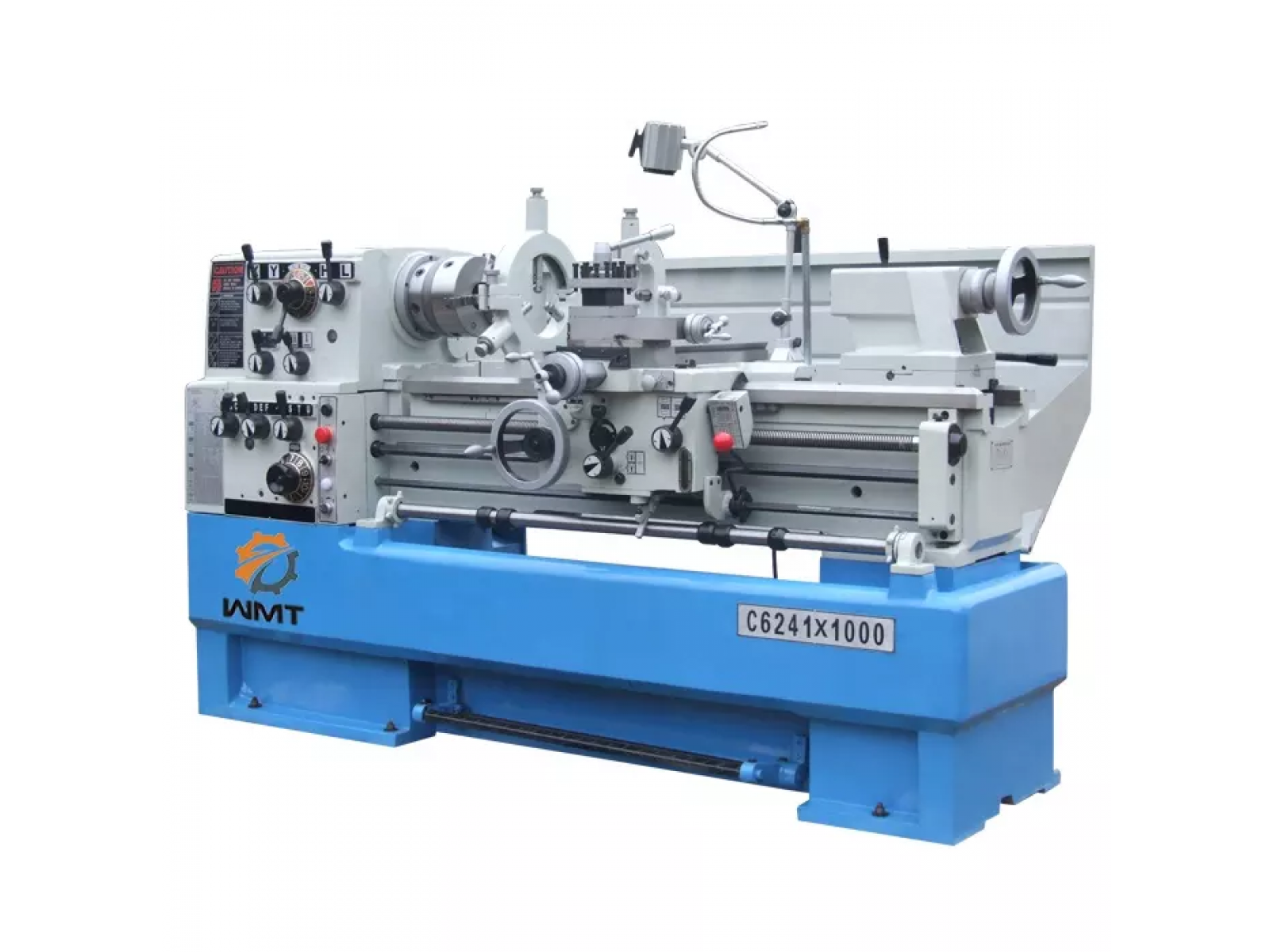

C6241

C6246

Swing over bed

Φ410mm

Φ460mm

Swing over cross slide

Φ220mm

Φ270mm

Swing in gap

Φ640mm

Φ690mm

Distance between centers

1000mm/1500mm/2000mm/3000mm

1000mm/1500mm/2000mm/3000mm

Valid length of gap

165mm

165mm

Width of bed

300mm

300mm

Spindle nose

D1-6

D1-6

Spindle bore

Φ58mm

Φ58mm

Taper of spindle bore

MT6

MT6

Range of spindle speed

12 changes, 25-2000r/min

12 changes, 25-2000r/min

Max.travel of top slide

128mm

128mm

Max.travel of cross slide

285mm

285mm

Max.section of tool

25×25mm

25×25mm

Pitch thread of leadscrew

6mm or 4T.P.I.

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds,0.031-1.7mm/rev

42 kinds,0.031-1.7mm/rev

Cross feeds range

42 kinds, 0.014-0.784mm/rev

42 kinds, 0.014-0.784mm/rev

Metric threads range

41 kinds, 0.1-14mm

41 kinds, 0.1-14mm

Inch threads range

60 kinds, 2-112T.P.I.

60 kinds, 2-112T.P.I.

Diametrical pitches range

50 kinds, 4-112DP

50 kinds, 4-112DP

Module pitches range

34 kinds, 0.1-7MP

34 kinds, 0.1-7MP

Tailstock quill diameter

Φ60mm

Φ60mm

Tailstock quill travel

128mm

128mm

Tailstock quill taper

MT4

MT4

Power of main motor

5.5kw(7.5HP) 3PH

5.5kw(7.5HP) 3PH

Power of coolant pump

0.1kw(1/8HP) 3PH

0.1kw(1/8HP) 3PH

Overall dimension

2200/2750/3250×1080×1370mm

2200/2750/3250×1080×1370mm

Packing size

2250/2800/3300×1120×1620mm

2250/2800/3300×1120×1620mm

Net weight

1670/1920/2070kgs

1670/1920/2070kgs

Gross weight

1980/2265/2450kgs

1980/2265/2450kgs
